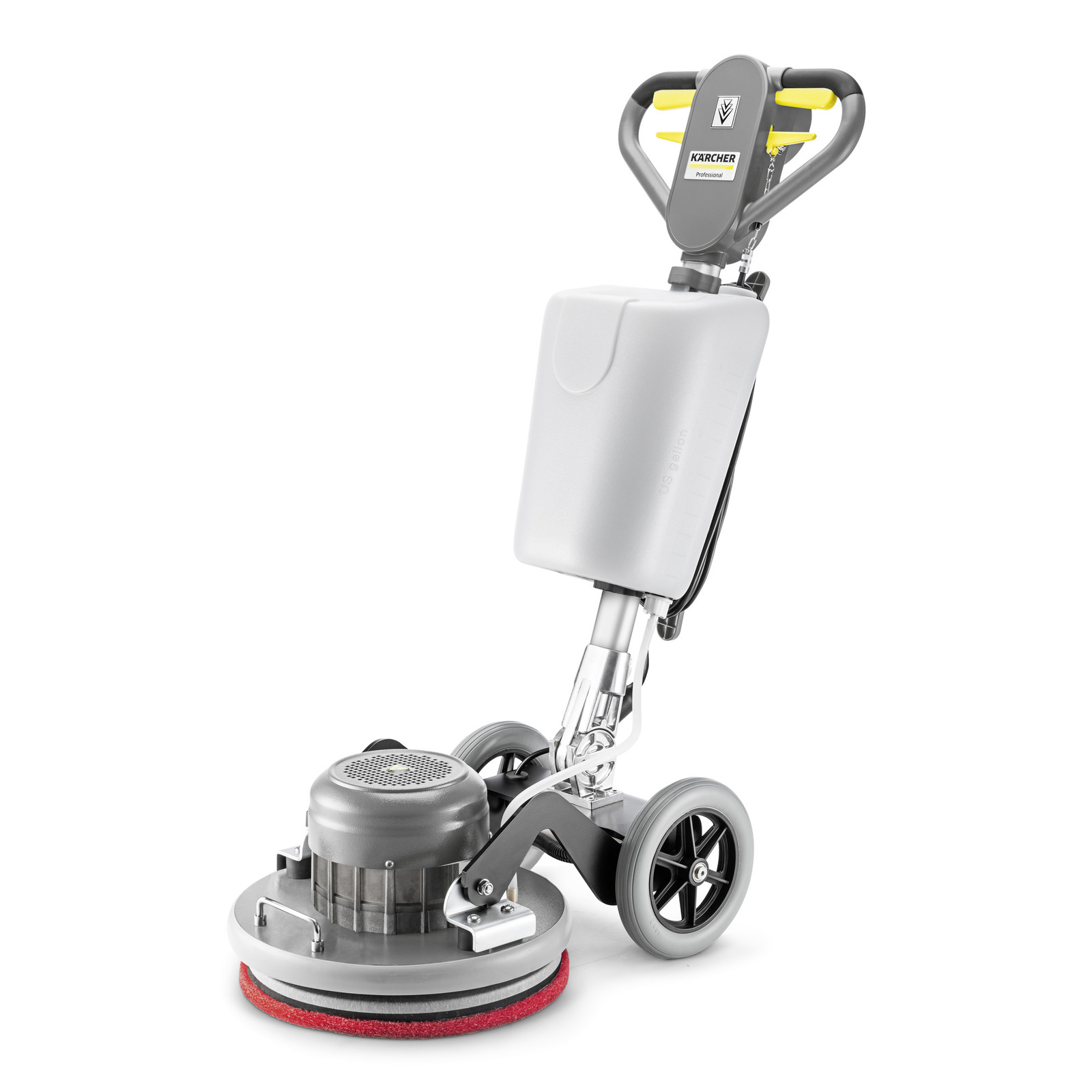

Single-disc machine BDS 43/Orbital C
Powerful, robust and versatile: our new orbital single-disc machine BDS 43 / Orbital C with combined orbital and rotary motions for maximum cleaning efficiency.
Description
Maximum cleaning efficiency, large range of applications, user-friendly handling: Our new orbital single-disc machine BDS 43 / Orbital C impresses particularly in the area of building cleaning, whether it is in offices, the retail sector, hospitals or schools.With innovative technology the machine combines orbital and rotary motions into a constant vibration, thus making possible a versatile range of applications, from deep scrubbing to polishing and crystallisation through to decoating.Its working width of 43 centimetres also permits work in narrow or furnished areas.
Features And Benefits
Roto-orbital motion
- Excellent scrubbing result with up to 50% reduced cleaning time.
- Superb cleaning results on all floor types.
- Reduced cleaning and training costs.
Powerful motor
- Extremely robust and durable design.
- Powerful for numerous applications.
- Low operation and service costs.
Specifications
Technical data
| Drive type | Mains operation |
| Working width, brushes (mm) | 430 |
| Working height (mm) | 100 |
| Tank, fresh washer (l) | 12 |
| Brush speed (rpm) | 60 |
| Brush contact pressure (kg) | 38 – 55 |
| Oscillations (O/min) | 1500 |
| Sound pressure level (dB(A)) | 54 |
| Power supply (V/Hz) | 220 – 240 / 50 |
| Colour | anthracite |
| Weight (with accessories) (kg) | 52.1 |
| Dimensions (L × W × H) (mm) | 1070 x 570 x 430 |
Scope of supply
- Tank: 12 l
- Pad drive board
Equipment
- Mains operation
